缩进流程

指令说明

让流程缩进。可以是任意支持缩进的Python代码，例如try、except、with、for、while、if等

指令输入参数

输入参数	输入参数类型	说明
代码	Python语句	例如try:、except、with、for、if等支持缩进的代码

指令输出参数

无

示例

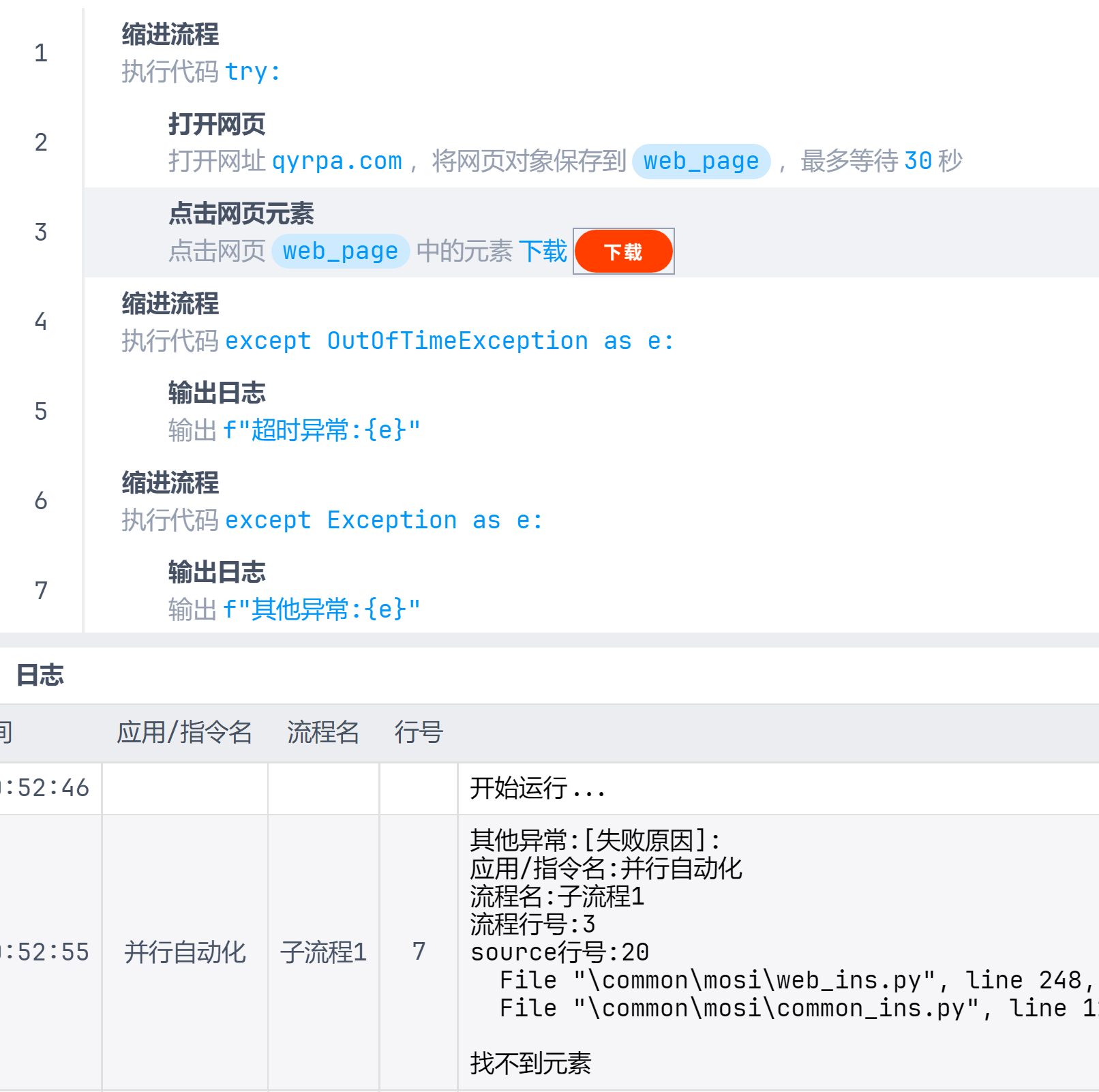

捕获自定义异常

[
    {
        "ins": "缩进流程",
        "in": "try:",
        "children": [
            {
                "ins": "打开网页",
                "in": {
                    "浏览器类型": "'Google Chrome'",
                    "url": "'qyrpa.com'",
                    "等待加载完成": "30"
                },
                "out": {
                    "网页对象": "web_page"
                }
            },
            {
                "ins": "点击网页元素",
                "in": {
                    "网页对象": "web_page",
                    "网页元素": "'f65c8477-c610-4973-9cef-8d5463631c1a'",
                    "点击类型": "'CDP静默点击'"
                }
            }
        ]
    },
    {
        "ins": "缩进流程",
        "in": "except OutOfTimeException as e:",
        "children": [
            {
                "ins": "输出日志",
                "in": {
                    "日志内容": "f'超时异常:{e}'",
                    "渲染HTML": "False"
                }
            }
        ]
    },
    {
        "ins": "缩进流程",
        "in": "except Exception as e:",
        "children": [
            {
                "ins": "输出日志",
                "in": {
                    "日志内容": "f'其他:{e}'",
                    "渲染HTML": "False"
                }
            }
        ]
    }
]

生成的Python代码

try:
    web_page = open_web_page('qyrpa.com', "Google Chrome", '30', None)
    click_web_element(web_page, ElementDescriptor('f65c8477-c610-4973-9cef-8d5463631c1a', "下载"), {"clickOption":"CDP静默点击"})
except OutOfTimeException as e:
    print_to_app(f'超时异常:{e}', {"renderHtml":False})
except Exception as e:
    print_to_app(f'其他异常:{e}', {"renderHtml":False})

with lock，并行变串行生成的Python代码

mylock = check_and_convert_vars(threading.RLock(), "任意类型")
def ____parallel_execute2(____rpa_gen_itr_loop_index, item):
    with mylock:
        print_to_app(f"并行执行：{item}", {"renderHtml":False})
        pause_sec(3)
        print_to_app(f"执行完成：{item}", {"renderHtml":False})
parallel_loop(['a','b','c'], False, ____parallel_execute2)

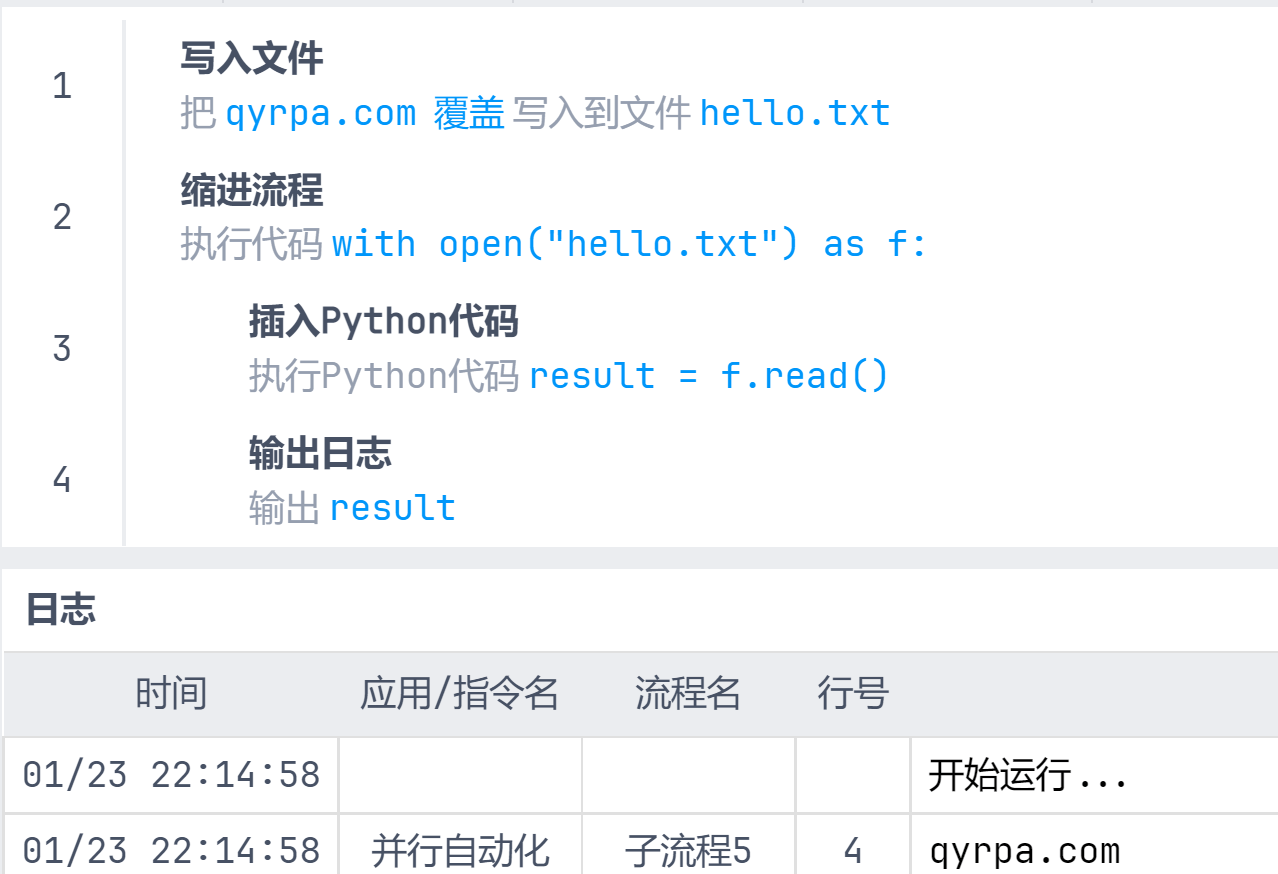

with读文件

[
    {
      "ins": "缩进流程",
      "in": "with open('hello.txt') as f:",
      "children": [
        {
          "ins": "插入Python代码",
          "in": {
            "Python代码": "result = f.read()"
          }
        },
        {
          "ins": "输出日志",
          "in": {
            "日志内容": "result",
            "渲染HTML": "False"
          }
        }
      ]
    }
]

生成的Python代码

with open("hello.txt") as f:
    result = f.read()
    print_to_app(result, {"renderHtml":False})

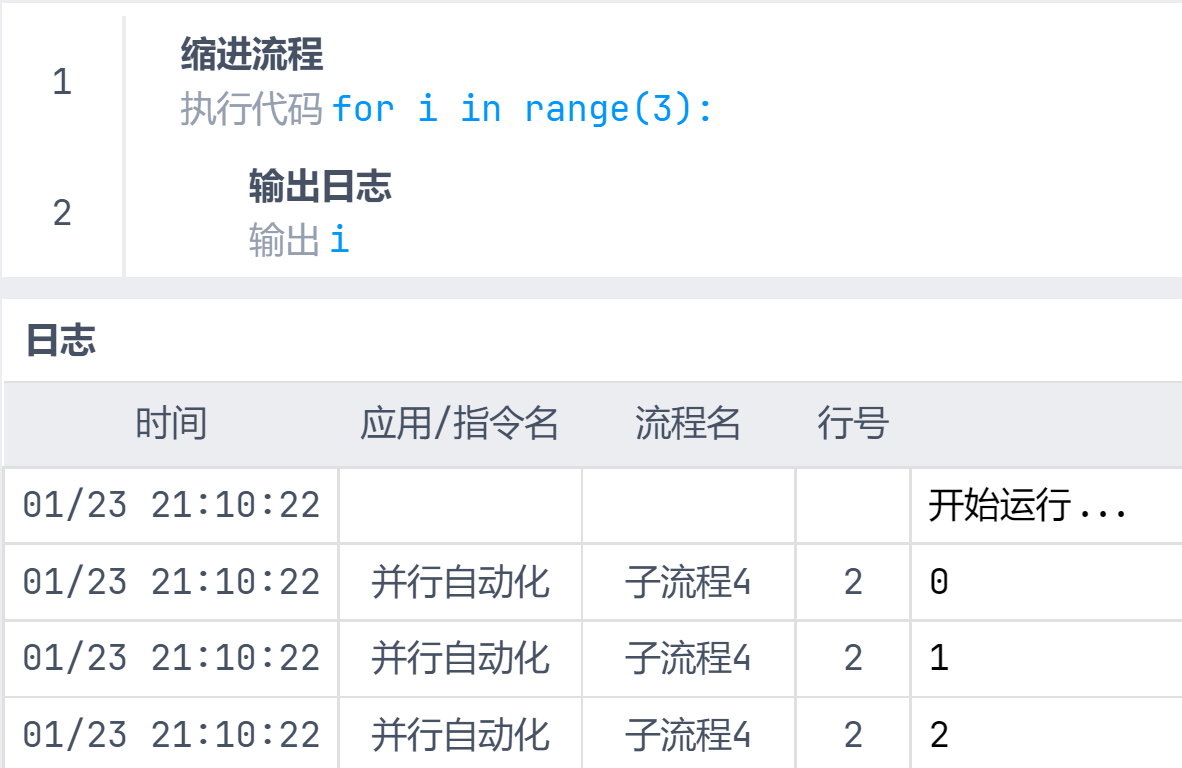

除了可以使用次数循环指令外还可以通过缩进流程

[
  {
    "ins": "缩进流程",
    "in": "for i in range(3):",
    "children": [
      {
        "ins": "输出日志",
        "in": {
          "日志内容": "i",
          "渲染HTML": "False"
        }
      }
    ]
  }
]

生成的Python代码

for i in range(3):
    print_to_app(i, {"renderHtml":False})
